TerraGen’s TGT system is the optimal solution for your commercial solar project with a pitched roof. Similar to our TGP system, but with the added benefit of any tilt angle from 0° – 35°, this pitched roof racking solution maximizes your system generation.
RACKING SOLUTIONS

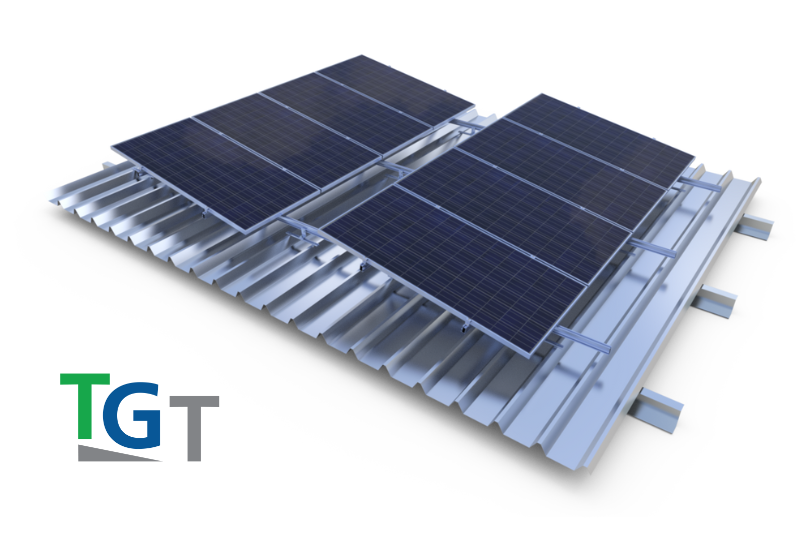

Tilted Pitched Roof Racking
Download Data Sheets
System Features & Benefits
Applicable on any roof type
- Avoid structural reinforcement by flexibility with number of attachments and bottom rail alignment.
- Creative fastening solutions.
- Lower mechanical/electrical installation time and cost.

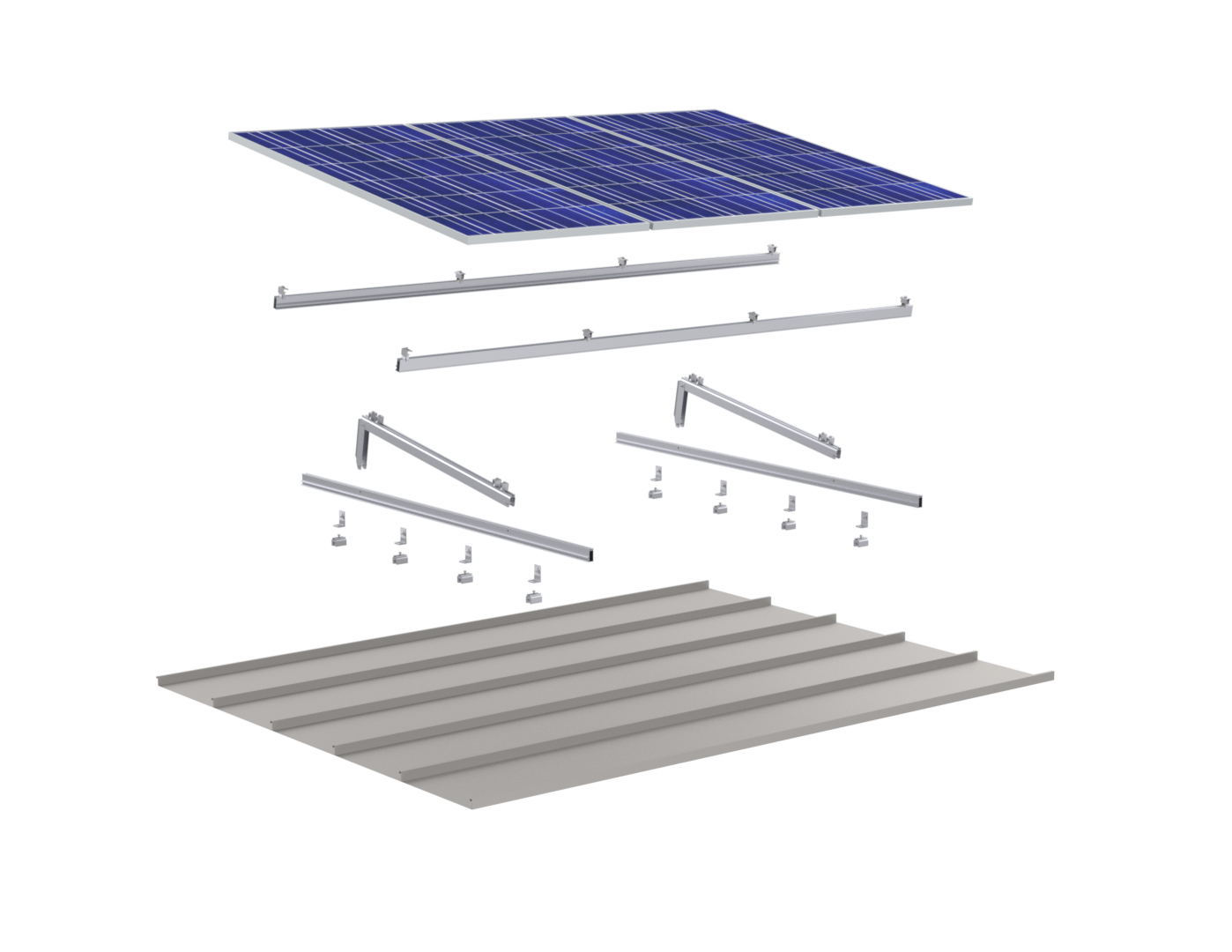

Pre-assembled Components
- Reduce installation time and cost.
- Eliminate on-site inter-row and tilt angle measurement errors.
- Universal module mid and end clamps can accommodate 30-50mm frames.
Enhanced Engineering Drawings
- Detailed structural and construction packages create on-site efficiencies, saving you time and money.
Attachment Options
Standing Seam
Shingle Roof
Trapezoidal Roof
Technical Brief
Inclinations:
Global Load:
Panel Orientation:
Material:
Row Spacing:
Roof Type:
Customizable
2.3-4 psf
Portrait or landscape
Aluminum and galvanized steel
Customizable
All types of flat roof
Roof Pitch:
Grounding Method:
Building Height:
Wind Speed:
Wind Tunnel Testing:
< 5 Degrees
2 Points per Array
ANY
ANY
RWDI Certified
